7-Inch D Commercial Gutters Built For High-Volume Roofs
7-inch commercial gutters in the D profile have tall, straight walls and a bottom that rounds into the face, deep enough for roofs that overwhelm residential sizes. Gutter Solutions LLC forms them on site and sizes the outlets and downspouts to the roof area they serve.
- Formed at 7 inches, on site
- Long eaves split at planned joints
- Larger outlets and downspouts
- Hangers spaced for a full trough
- Work phased around tenants
Get Your FREE Commercial Gutter Estimate
Property managers welcome. Send the address and we will measure the roof edges.
- Commercial roofsWarehouse, retail, multi-family
- Long eaves plannedSplit at high points or joints
- Outlets sized upDownspouts matched to the roof
- Phased on paperSequence agreed before work starts
What 7-inch commercial gutters look like in the D profile
Tall front and back walls, a floor that curves up into the face instead of meeting it at a sharp fold, and a rolled lip along the top edge. The rear wall rises above the front, so a trough pushed past capacity spills outward, away from the building.

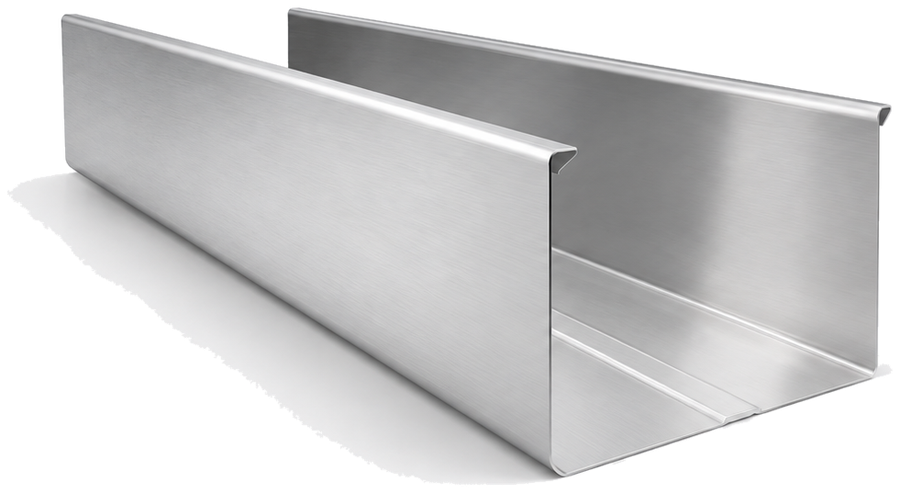

Aluminum
The usual commercial choice: heavier-gauge coil that will not rust, prefinished in colors that sit well against metal panels and storefront trim.

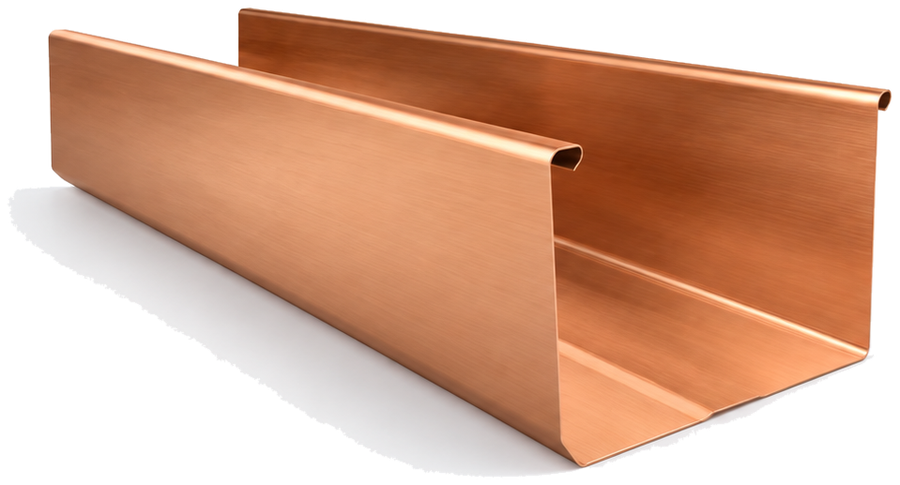

Copper
Rare on warehouses, but at home on a landmark storefront, a church or a clubhouse, where the building is meant to be looked at.

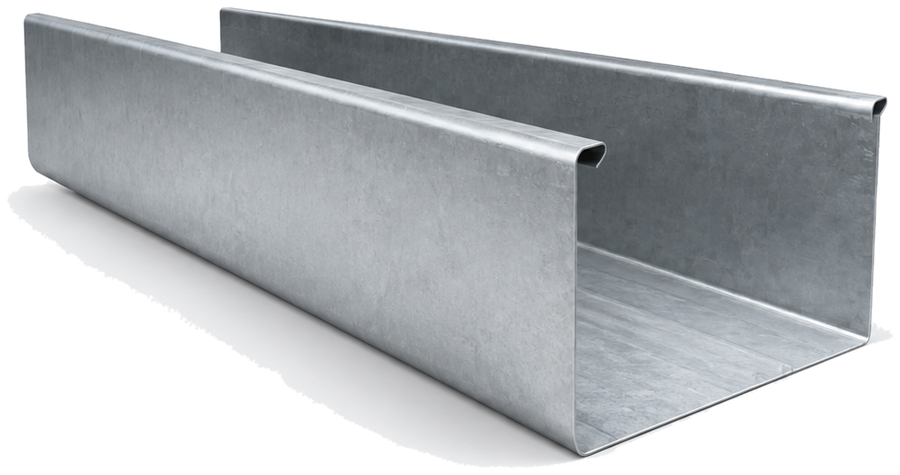

Steel
Hard-wearing where forklifts and ladders knock the gutter, though it relies on its coating. Ask at your estimate whether it suits your site.
Weighing metals for a coastal building? See how aluminum and copper compare near the coast.
Where residential gutters run out of room

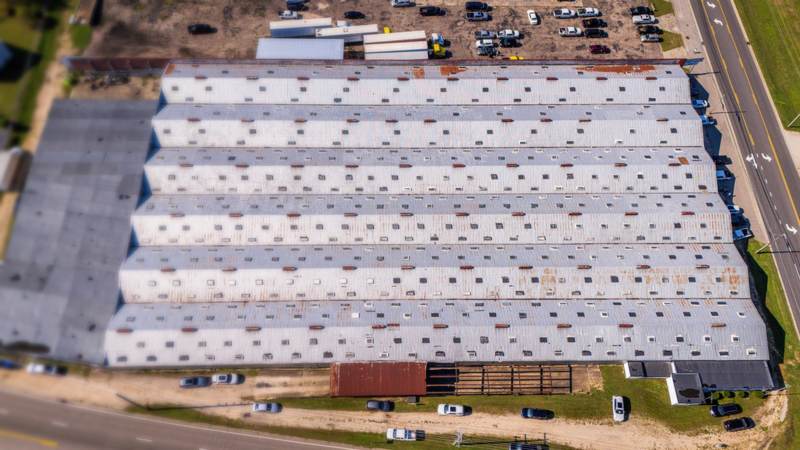

A warehouse or apartment block does not just have more roof than a house; it concentrates it. Long, low-pitched planes gather water from a wide area and deliver it to a few eaves, often at valleys where two roof sections meet. A residential trough hung there overtops in the first hard storm, however well it was installed.
The 7-inch D answers with depth. Instead of growing wider and sticking further out from the building, it gains capacity vertically, and the formed shape stays stiff across the long spans between hangers.
Roofs like these are common across the region: distribution buildings near the port terminals in Savannah and Garden City, apartment complexes around Statesboro and retail strips in Brunswick.
A 7-inch D commercial gutter is a deep seamless trough with straight walls and a rounded bottom, formed from heavier coil for warehouse, retail, multi-family and agricultural roofs that shed more water than a residential gutter can carry.
The 7-inch D in four numbers
- 7″Formed widthA deep D trough rolled on site
- 50 ftTypical longest runLonger eaves are split at high points or expansion joints
- 4Profiles we formD and box for big roofs, K-style and half-round for houses
- 27Georgia countiesCoastal and inland, plus the SC Lowcountry
Signs your building has outgrown its gutters
Property managers usually notice these long before anyone calls them a gutter problem.
- Water sheeting over the front at entrances and docks in every heavy rain.
- Overflow at the valleys where two roof sections pour into one run.
- Sagging between hangers on long spans once the trough is full.
- Downspouts backing up while the trough above them spills over.
- Streaks down the wall and staining just below the eave line.
- Washed-out beds and gravel along the drip line or at the outlets.
- Water inside at the wall line in stairwells, units or stock rooms after storms.
- Repairs that never hold resealed joints on a sectional system that open again.
One sign on its own can be a clog. Several together usually mean the roof has outgrown the system.
K-style, box or D: matching the trough to the roof
All three go on commercial buildings. The right one depends on the roof area, the look the building needs and how the eave is built; the sizing method is in our guide to what size gutters you need.
| Compared on | K-style | Box | 7-inch D |
|---|---|---|---|
| Shape | Flat back, molded face | Square sides, flat bottom | Tall walls, rounded bottom |
| Formed widths | 6, 7 or 8 inches | 7 inches only | 7 inches only |
| Typical buildings | Offices, small shops, houses | Farm buildings, shops, modern commercial | Warehouses, retail, multi-family |
| Looks like | Residential trim | Architectural and square | Industrial and deep |
| Struggles on | Very large roof planes | Ornate or historic facades | Small or decorative elevations |
On a mid-size building, the box profile is the closest alternative. Our gutter types page compares every profile we form.
Working around tenants, docks and open doors
Most commercial gutter work happens on buildings that stay open. The sequence is agreed before anything starts: which elevation goes first, where equipment stands, and how entrances, loading docks and parking stay usable while each section is changed.
Discharge gets the same planning. A downspout that empties across a sidewalk or into a dock well only moves the problem, so larger outlets are often paired with buried downspout lines that carry the water to a proper outlet.
The wider picture, from apartment blocks to retail strips, is on our page about gutters for commercial buildings.
- Sequence agreed in writing
- Entrances kept usable
- Discharge planned to an outlet
- Old material hauled away
What our customers say
Real reviews from our Google Business Profile — not written by us.
Read our reviews on Google
Our Business Profile carries every review our customers have left, with photos from the jobs and directions to find us.
Questions from owners and property managers
Still have a question? The quickest answer is a phone call, and we will talk it through with you.
(912) 202-0537They are close relatives. Both are formed at 7 inches with tall, straight walls. Where they part is the bottom: the box meets its flat floor at square folds, while the D rounds its floor up into the face, so there is no sharp inside corner along the front.
The bigger difference is the job each one does. The box goes on barns, shops and modern homes. The D is the one we specify for warehouses, shopping strips and apartment buildings, where the eaves are long, the facade is plain and the outlets and downspouts are sized up with it.
In planned sections. Aluminum grows and shrinks with the heat, so a very long eave is divided into runs of roughly 50 feet or less, split at high points or joined with expansion joints, and each run falls to its own outlets.
The machine could roll one piece far longer, but over a few summers the movement would buckle the trough or work its hangers loose. Our guide explains why long eaves are split into shorter runs.
It depends on the facade. On a plain metal or concrete building the deep face disappears into the architecture. On a storefront with brick or trim detail, a prefinished color matched to that trim softens it, and some owners choose the box profile or an 8-inch K-style for a lighter line.
Because the outlet, not the trough, is usually where a commercial system chokes. A deep 7-inch trough can gather water faster than a small outlet can drop it, so outlets and downspouts are matched to how much roof feeds each one.
Not if the edge it hangs on is sound. A full trough is heavy, so we check the fascia or eave during the estimate and space the hangers for the load. Soft or damaged sections are dealt with before the new gutter goes up.
Often, yes. Plenty of older commercial buildings let water pour straight off the eave onto walks and parking. Gutter Solutions LLC measures the roof, confirms the eave can carry hangers and designs the outlets and discharge from scratch.
Get the roof measured before the next storm season
Call or text with the property address. We will walk the building, measure the roof edges and outlets, and deliver a written specification for the trough, downspouts, hanger spacing and phasing.
Call or text(912) 202-0537
